Putting the into Reproducible (Marine) Research

Marine Biology Live - 12th Dec 2023

Dr Anna Krystalli

👋 Hello

me: Dr Anna Krystalli

• Research Software Engineer, R-RSE

  • mastodon annakrystalli@fosstodon.org
  • github @annakrystalli
  • email r.rse.eu[at]gmail.com

• Background in Marine Macroecology

• Editor rOpenSci

• Core Team: ReproHack

slides: bit.ly/r-in-repro-research-mba

Hi I’m Anna - I’m an RSE for my own company, R-RSE after spending quite some time as an RSE at the University I have a background in Marine Macroecology - An editor for rOpenSci - And a core team member of the ReproHack project

ANd you can find these slides at the following link

Motivation

I’m going to start with some motivating background

Calls for reproducibility

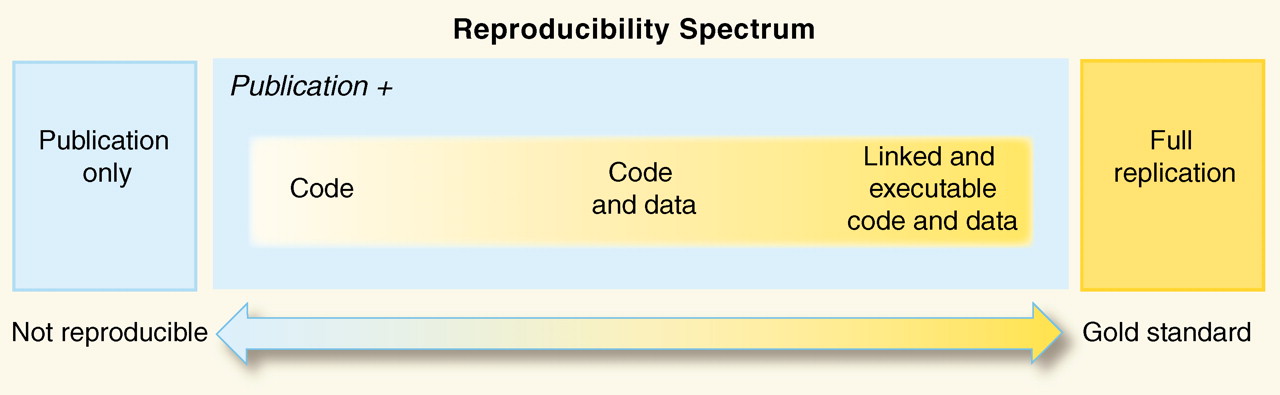

Reproducibility has the potential to serve as a minimum standard for judging scientific claims when full independent replication of a study is not possible.

Reproducible Research in Computational Science ROGER D. PENG, SCIENCE 02 DEC 2011 : 1226-1227

• I’m sure most by now have heard about the reproducibility crisis.

• I don’t want to go into to much detail about the many and varied drivers of the crisis and discussions about the implications.

• but one thing that most would agree on is that the publication system as it stands is not fit for validating modern research which is increasingly underlaid by more and complex computational workflows

We have been making progress though, with computational reproducibility, the ability to reproduce a result from the original code and data being put forward as a minimum standard for validating research findings

Is code and data enough?

Karthik Ram: rstudio::conf 2019 talk

• The good news is that this recognition has lead to more code and data being published.

• But that hasn’t necessarily made research more reproducible.

• Often trying to working with them feels a lot like this experience depicted here where you download some materials, start playing around, can’t get them to work and soon give up.

• This can be because of difficulty recreating a complex computational environment or something as simple as missing documentation.

• In truth, it’s not really surprising because still, training in practices and standards for researchers is still lagging despite demands for reproducibility.

R for Open Reproducible Research

A whistle-stop tour of tools, practices and conventions in R for more:

The motivation for this talk was to give a A whistle-stop tour of tools, practices and conventions if you are a researcher working in R that can help make your work more:

• Reproducible

• Robust

• Transparent

• Reusable

• Shareable research materials

A few caveats:

This is a long slide deck! And I won’t be able to get through all of it. But the slides are packed with links to further info so when I’ve given this talk before, folks have appreciated being able to browse the content so feel free to explore in more detail in your own time,

Project management

Icon by Freepik from flaticon.com

I’m going to start with some tips on project management

Rstudio Projects

Use Rstudio projects to keep materials associated with a particular analysis together

• Self contained and portable
• Working directory set to root of project on launch
• Fresh session everytime the project is launched

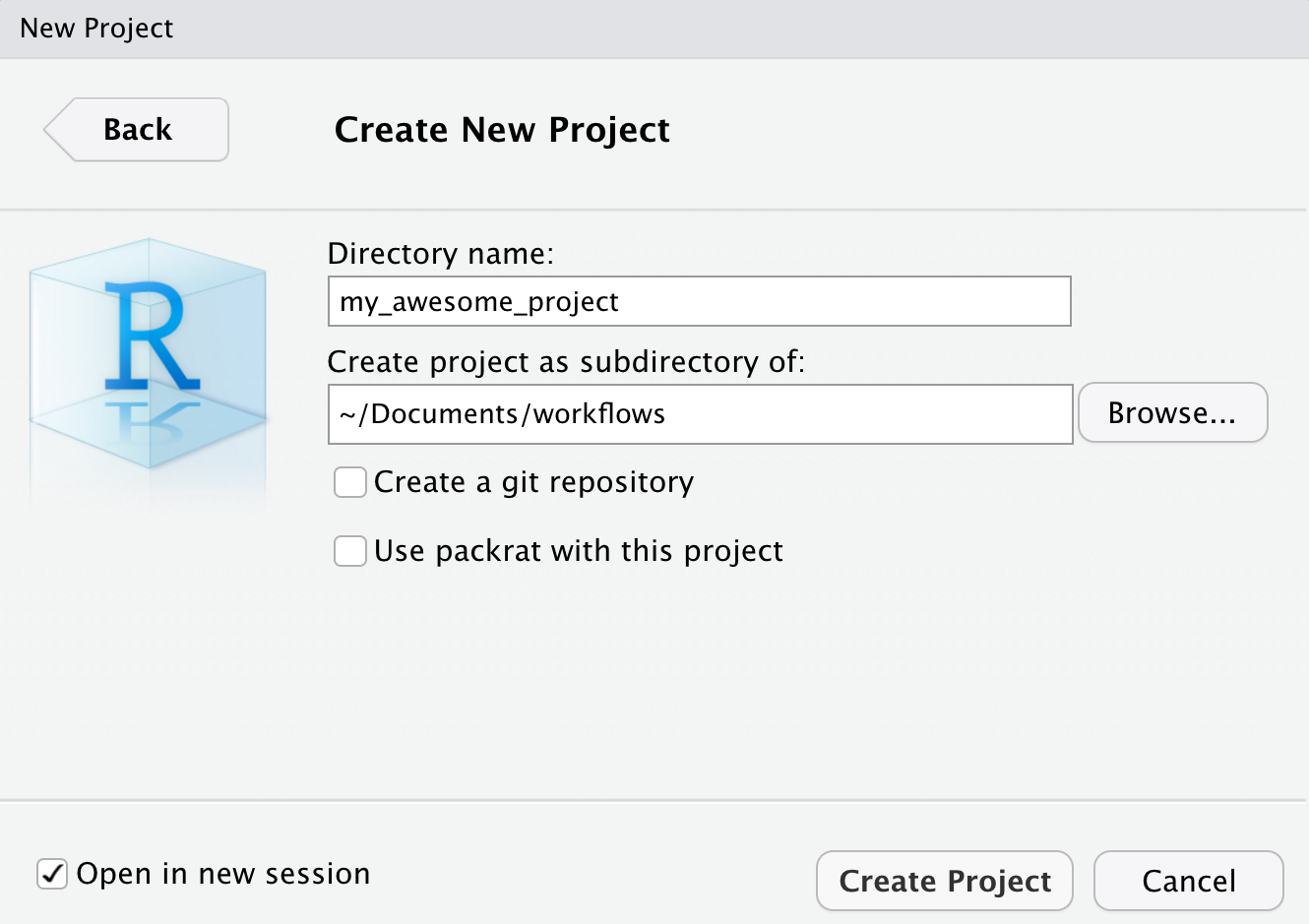

File > New Project > New Directory

First of all, how to organise your materials associated with a project

• If your working in R, I recommend you work in Rstudio, which is an IDE that makes working with R code a lot easier

• I also recommend you organise your work into Rstudio projects.

• A project is, in essence, a folder and the idea is that it contains everything you need to run your analysis.

So it’s

• Self contained and portable, making easier to share or move around
• WHen you open it, the Working directory set to root of project
• And you also start with a Fresh session everytime the project is launched

See Jenny Bryan’s post on project oriented workflows for more details

-This is what a project looks like when launched - Here’s the working directory set to root - You can see the environment is empty - and you can browse all the files in the project in the files tab

📦 here

Use 📦 here to create robust relative paths

Robust paths relative to project root

• portable
• independent of:
  • working directory
  • source code location

here::here()

[1] "/Users/Anna/Documents/workflows/talks"

here::here("data", "summaries.csv")

[1] "/Users/Anna/Documents/workflows/talks/data/summaries.csv"

Having your work organised in a self contained folder also means you can write robust path names.

And for this I recommend using relative path names to the root directory. EVen better, you can use package here

• Running the function with no arguments returns the root path of the project

• You can supply a vector of character strings to build paths within the project like I’ve done here.

• The important point is that these will evaluate correctly on anyones machine, which wouldn’t be the case if for example I had hard coded the parent directory path, and makes your paths:

• Robust relative to project root

  • portable
  • independent of:
    • working directory
    • source code location

Dependency management

Minimal approach

include session info

sessionInfo()

include an install.R script

install.packages("dplyr")
install.packages("purrr")

Most robust approach

use 📦 renv (previously packrat)

• Create and manage a per project library of packages
• initialise during project set up

# initialize a project-local private R library with those packages and snapshot dependencies through lockfile
renv::init()
#create a lockfile capturing the state of a project's R package dependencies
renv::snapshot()
 # Restore a project's dependencies from a lockfile
renv::restore()

will revisit later on

Another really important consideration and very common sticking point is sufficient management of dependencies.

A minimal approach would be to print your session information somewhere in your documentation. This includes system information as well as loaded packages and their versions

ALso include executable script to install necessary packages to make it easier for others to set up their projects, for example by including a install.R script.

A more robust approach would be to use package renv which creates a separate package library for each project which is included in the project. This means when you share your project, you are sharing the exact versions of packages used for your analysis.

We’ll revisit this topic with an intermediate approach when we talk about packaging code.

Version Control

Let’s move on to another very important topic when managing project, version control

Version Control

What is it? 🤔

The management of changes to documents, computer programs, large web sites, and other collections of information.

Git

Open source (free to use) Version control software.

GitHub

A website (https://github.com/) that allows you to store your Git repositories online and makes it easy to collaborate with others.

Let’start by defining a few terms:

• Version control refers to the management of changes to documents, computer programs, large web sites, and any other collections of information.

• git is the open source software that allows us to manage such changes on out local machine

• while GitHub is a website or hub where anyone can share their git repositories online, enabling collaboration

Why use them in research?

Exhibit A

Image: xkcd CC BY-NC 2.5

Exhibit B

Image: “Piled Higher and Deeper” by Jorge Cham www.phdcomics.com

Now, why should we use them in research?

• For starters, by regularly saving your work with a version control system, you can recover your work from accidental losses (especially if you’ve saved a copy on Github too). You can also return to previous states of your work

• Another really important feature is that it helps with the familiar to many yet all too common situation depicted here, because it helps manage changes by many contributors in an efficient way.

Git, Github & Rstudio

Before: git only through the terminal 😢

Now, in the past you could only run git in the terminal. Well actually that’s not quite correct, there were other programs you could use it through but you would have to leave R, go to the other program, record all your changes and then go back to R to continue working.

. . .

Now: Rstudio + usethis 📦 == ❤️ Git & GitHub 🤩

Rstudio integration with git and package usethis have made it much easier to version control your R projects!

This guy knows! He’s been using it since it first came out!

Initialise git

Initialise Rstudio project with Git by just checking a box!

It’s now a repository

Forgot to check git box? use usethis::use_git()

Now that you are all set up, you are ready to initialise your analysis projects with git.

Initialising a project with git is really easy in Rstudio by clicking a box when you are first creating it.

This is now called a repository.

But is you do forget, you can always use function usethis::use_git() in your project.

Git panel

Integrated graphical user interface

Rstudio has an integrated git panel through which you can perform the most common version control functions.

So let’s have a quick look at what a typical git workflow looks like:

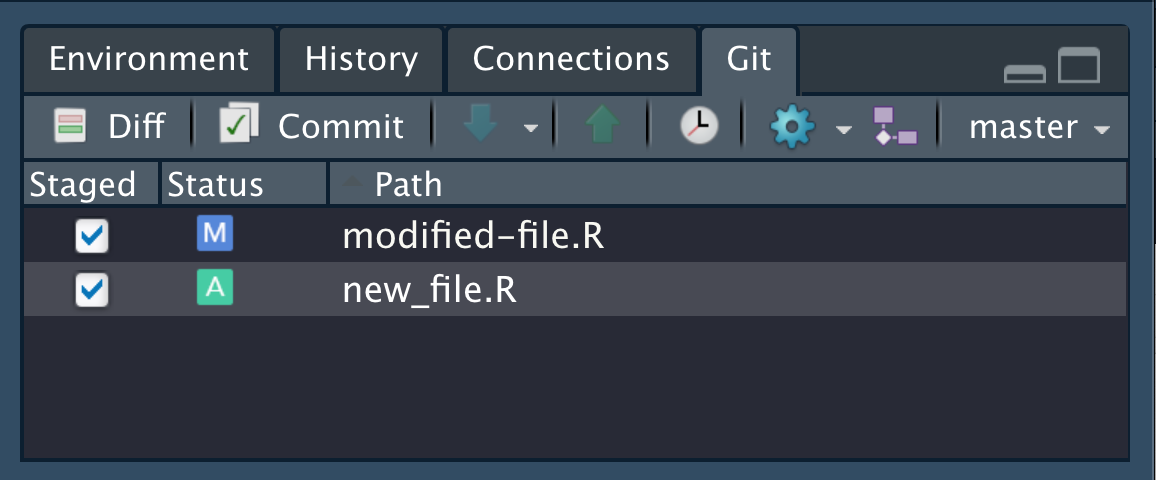

Git Rstudio workflow

view file status

stage files

commit changes

Here we are looking at the git pane

Share on GitHub

Create repo

usethis::use_github(protocol = "https")

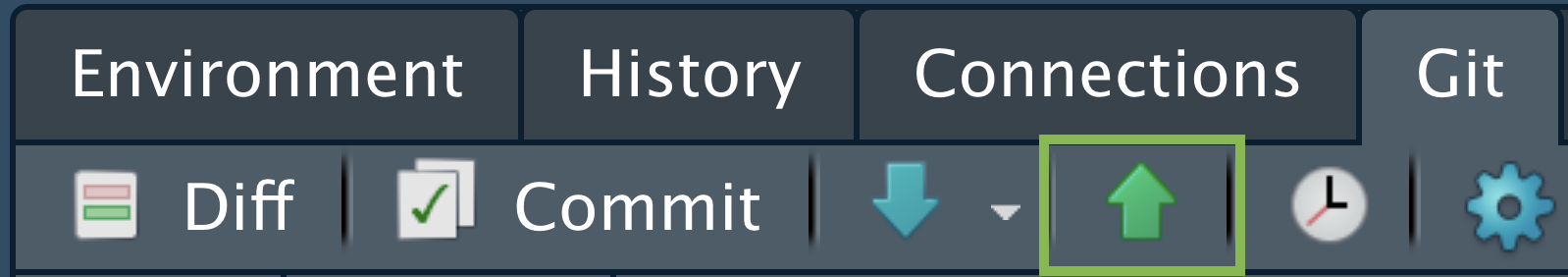

Push further changes

Once you commited your files and changes locally, you might want to share them on GitHub to make the work accessible by yourself or others online.

To do so, you can use usethis::use_github(protocol = "https")

This will create a repository on GitHub in your account and push all materials up to GitHub.

Any further changes you make locally, you can push up to GitHub by using the push button.

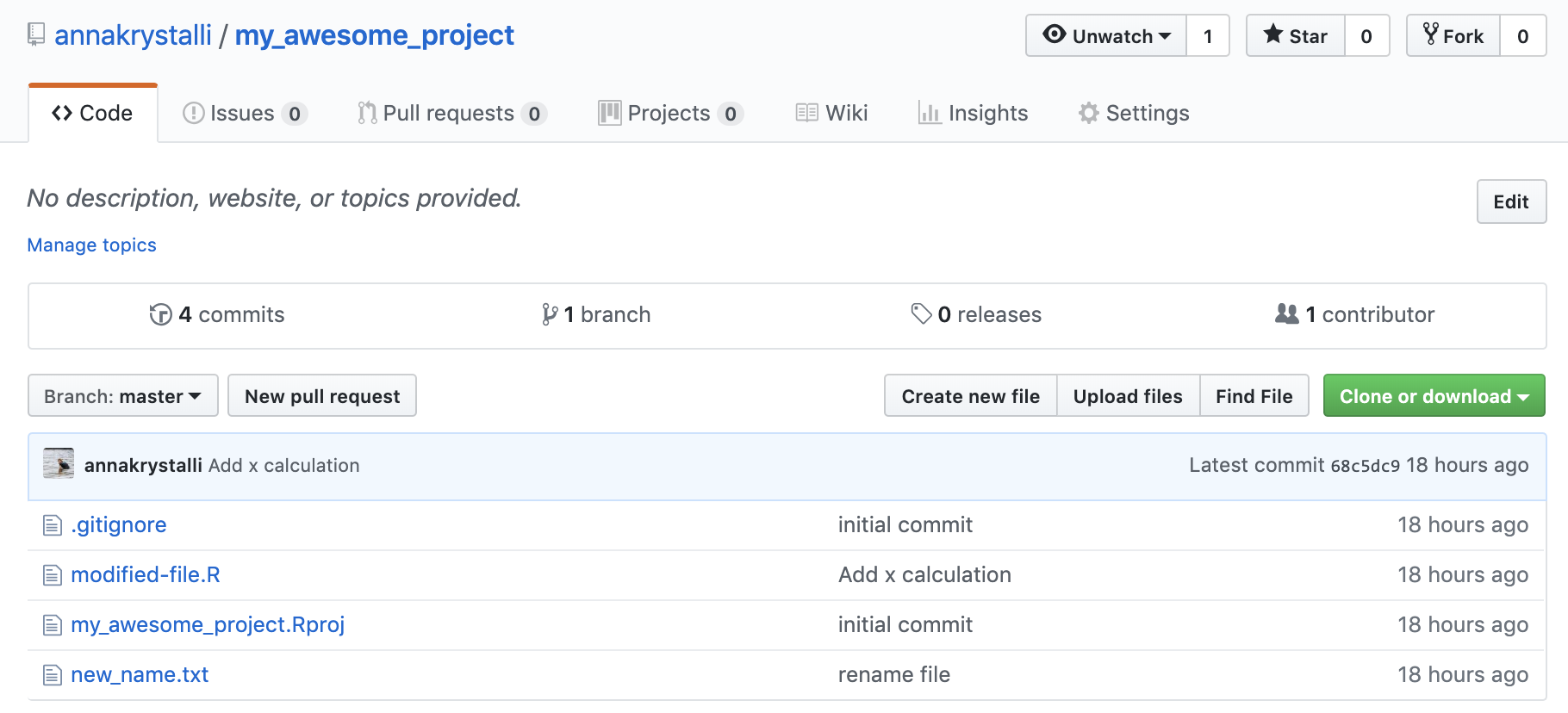

Anatomy of a GitHub Repo

• README. Explain what your project is, and how to use it.
  • usethis::use_readme_md()
  • usethis::use_readme_rmd()
• LICENSE. Without a licence, the contents of the repository are technically closed.
  • Examples licence MIT: usethis::use_mit_license(name = "Anna Krystalli")
  • ?licenses: details of functions available to generate licenses
  • https://choosealicense.com/ help on choosing a licence.
• CONTRIBUTING.md - guidelines for contributors.
  • usethis::use_tidy_contributing() provides a relatively strict but instructive template
• CODE_OF_CONDUCT.md set the tone for discourse between contributors.
  • use_code_of_conduct()

Now let’s go through the anatomy of a GitHub repository.

There’s a number of common documents you might find which I’ve listed here, and I’ve added some functions in R that can help you generate them.

GitHub issues

use GitHub issues to plan, record and discuss tasks.

issues

projects

Finally another really useful feature of GitHub repositories I want to mention are GitHub issues.

These are basically a task tracker. You can open issues relating to a specific task you need to accomplish, a problem you are having with the code, or just to discuss something.

The nice thing about using them is that it keeps discussions about the project attached to the project rather that disparate email threads.

The project board also allows you to organise them and visually track progress of your various tasks.

Literate programming with Quarto or Rmarkdown

Next, let’s talk about another really relevant topic for researchers, literate programming.

Literate programming

Programming paradigm first introduced by Donald E. Knuth.

Treat program as literature to be understandable to human beings

• focus on the logic and flow of human thought and understanding
• single document to integrate data analysis (executable code) with textual documentation, linking data, code, and text

Literate programming in R

Quarto (qmd or Rmarkdown .Rmd) integrates:

• a documentantion language (.md)

• a programming language (R, python, SQL)

• functionality to “knit” (render) them together through 📦 knitr

features

• ✅ provides a framework for writing narratives around code and data

• ✅ Code re-run in a clean environment every time the document is rendered

In R, our most modern framework for literate programming is called Quarto and derives from a much more mature framework, Rmarkdown and it integrates:

• a documentation language (.md but can include html)

• a programming language (R by default but also has engines to support a number of different languages including python, sql, stan ao)

• functionality to “knit” them together through 📦 knitr

Quarto out

The cool thing about markdown is the richness of the types of documents you can output to.

The most common is to html document but you can also create: - pdf,

-… and even word.

This image was created by Scriberia for

The Turing Way community and is used

under a CC-BY licence

Quarto to html

File > New File > Quarto Document

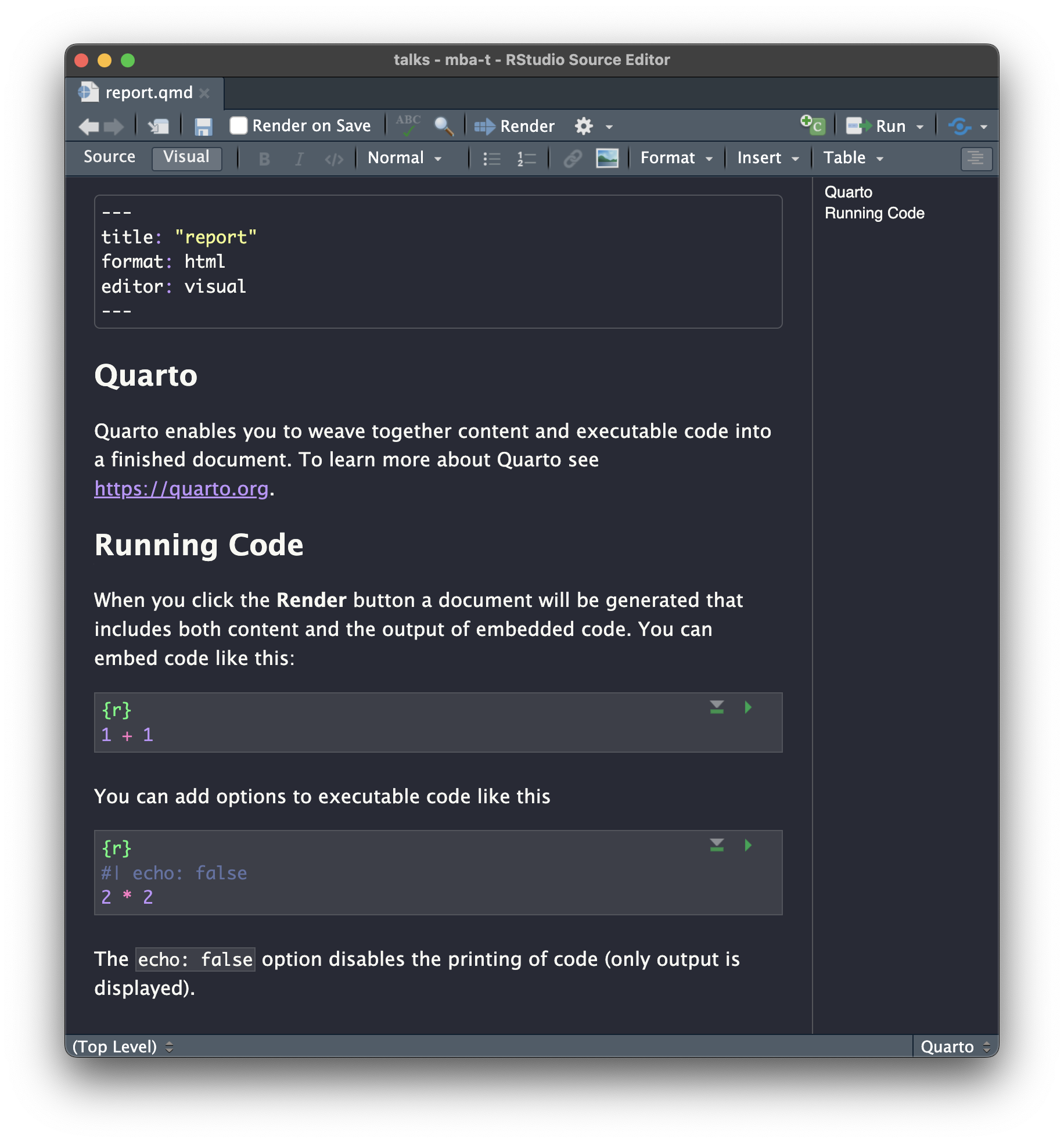

• Source editor
• Visual editor

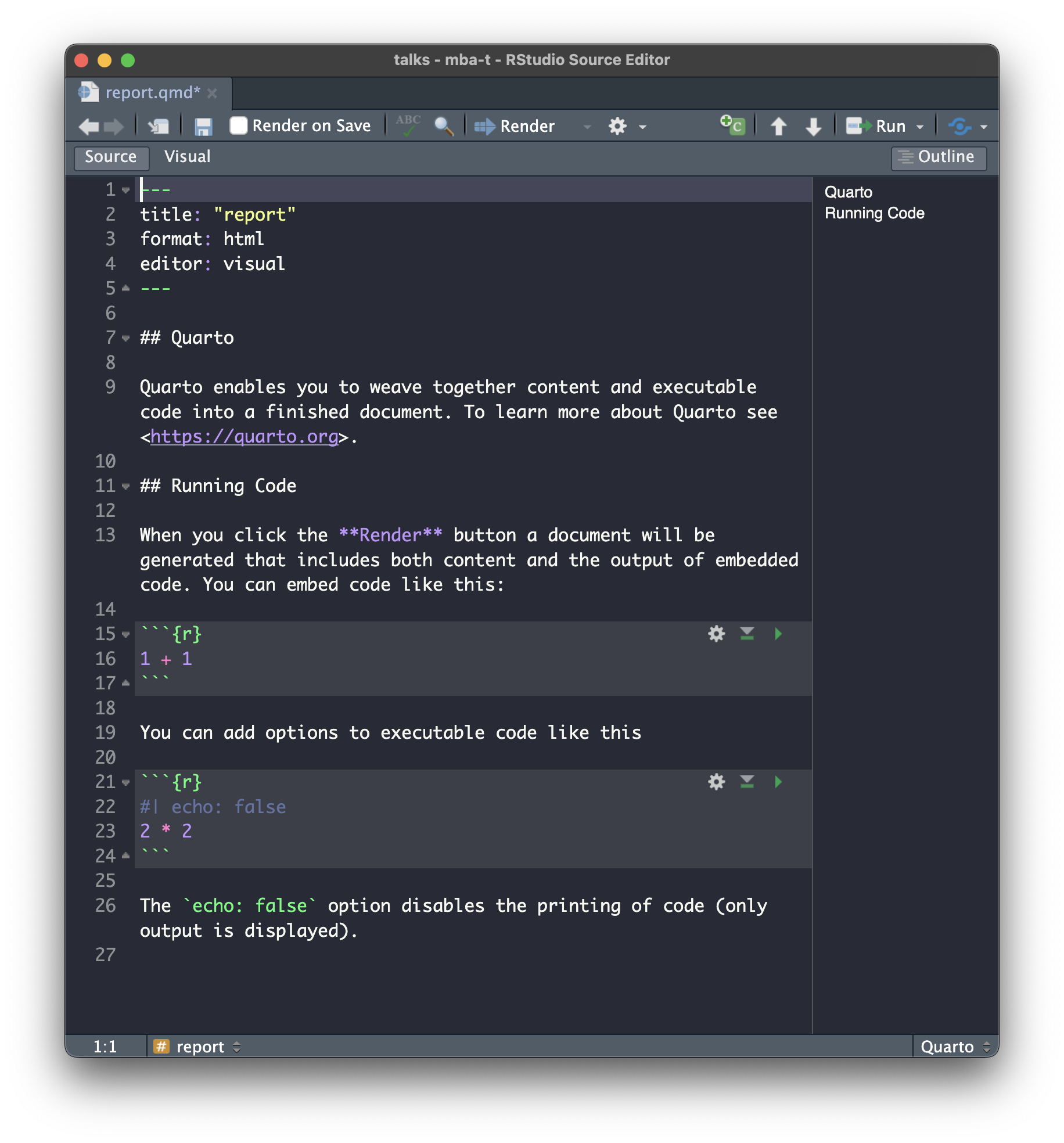

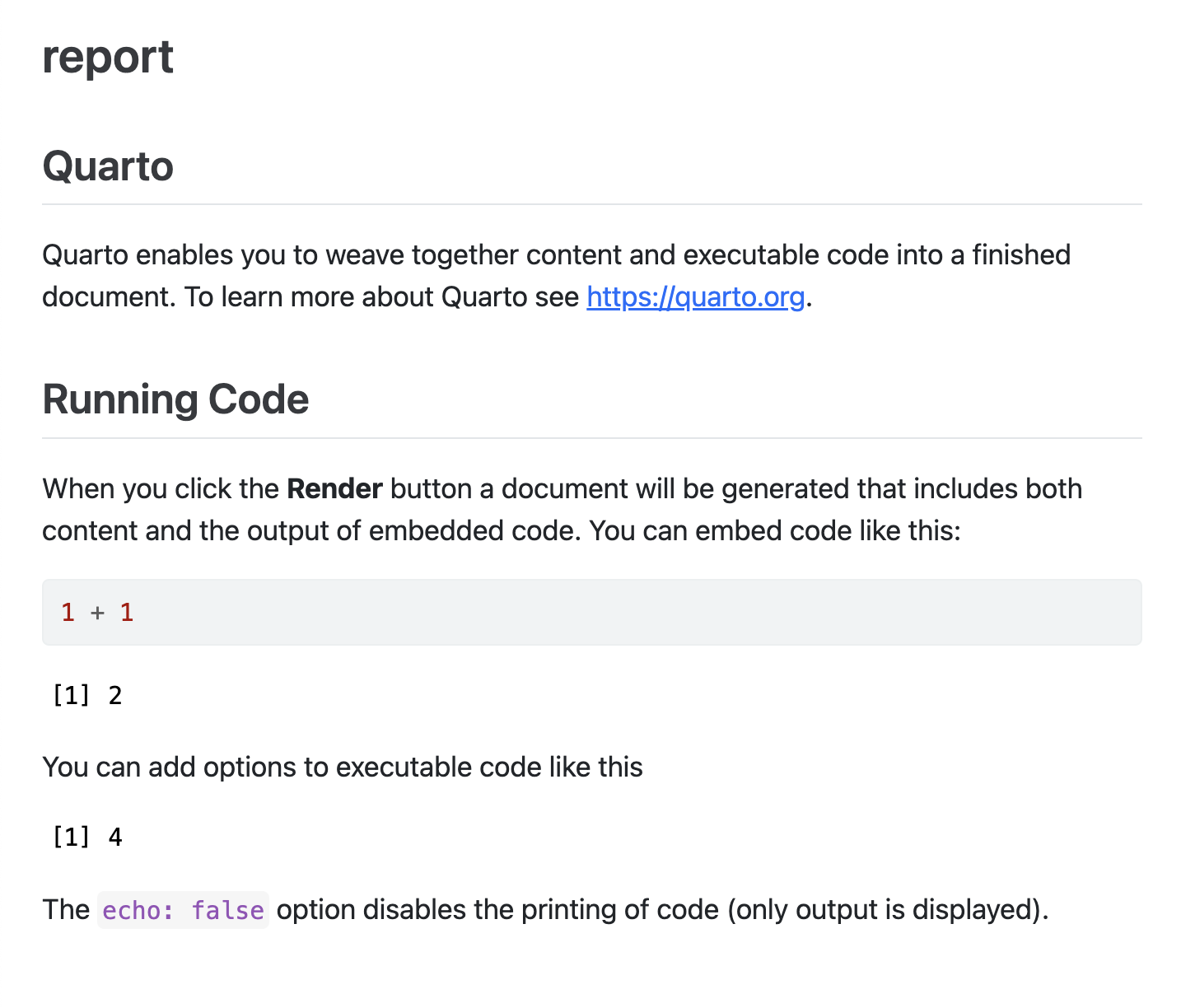

Let’s have a look at an example document which is being knit to html

On the left you have your quarto document. - The top is the YAML header that contains document level metadata such as: - author, title, output type and styling settings like themes and whether to include a toc

• Below is an example of markdown, and the various notations render to specific formatting in the knit document

• Finally, these are the code chunks containing executable code and the offer a variety of options to control how they are displayed, how they are evaluated and how they are output.

Applications in research

Quarto documents can be useful for a number of research related long form documentation materials:

• Documentation of code & data
• Electronic Notebooks
• Supplementary materials
• Reports
• Papers
• Theses, Slides, websites, ebooks and more!

So why should we care about these documents in research?

Quarto Features for Scientific Publishing

• Citations & Footnotes
• Front matter
• Cross-references
• more…

See more

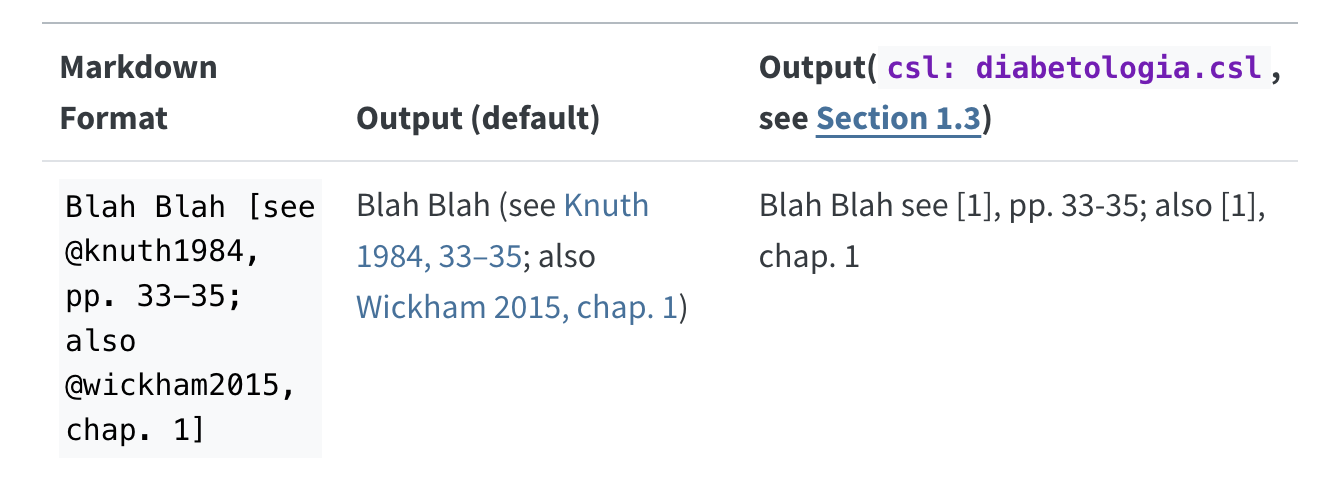

Quarto can generate citations and a bibliography in a number of styles. You will need:

• A bibliographic data source, (.bib) or (.bibtex) file.

• Optionally, a CSL file which specifies the formatting to use when generating the citations and bibliography.

---
title: "Toward a Unified Theory of High-Energy Metaphysics: Silly String Theory"
date: 2008-02-29
author:
  - name: Josiah Carberry
    id: jc
    orcid: 0000-0002-1825-0097
    email: josiah@psychoceramics.org
    affiliation:
      - name: Brown University
        city: Providence
        state: RI
        url: www.brown.edu
abstract: >
  The characteristic theme of the works of Stone is
  the bridge between culture and society. ...
keywords:
  - Metaphysics
  - String Theory
license: "CC BY"
copyright:
  holder: Josiah Carberry
  year: 2008
citation:
  container-title: Journal of Psychoceramics
  volume: 1
  issue: 1
  doi: 10.5555/12345678
funding: "The author received no specific funding for this work."
---

See more

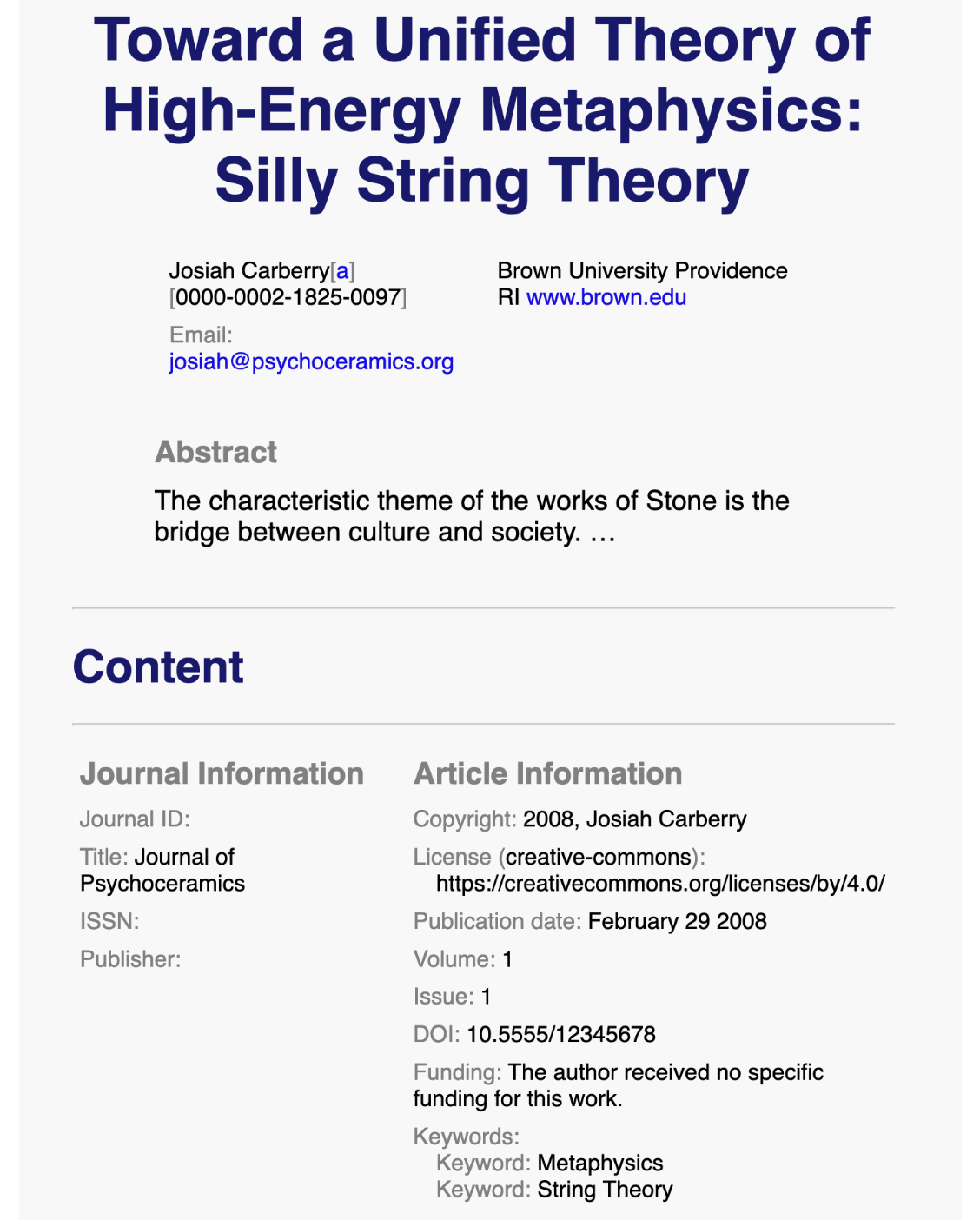

Scholarly articles require much more detail in their front matter & Quarto provides a rich set of YAML metadata keys to describe these details:

• authors and their affiliations,
• abstracts and keywords.
• information on copyright, licensing and funding.

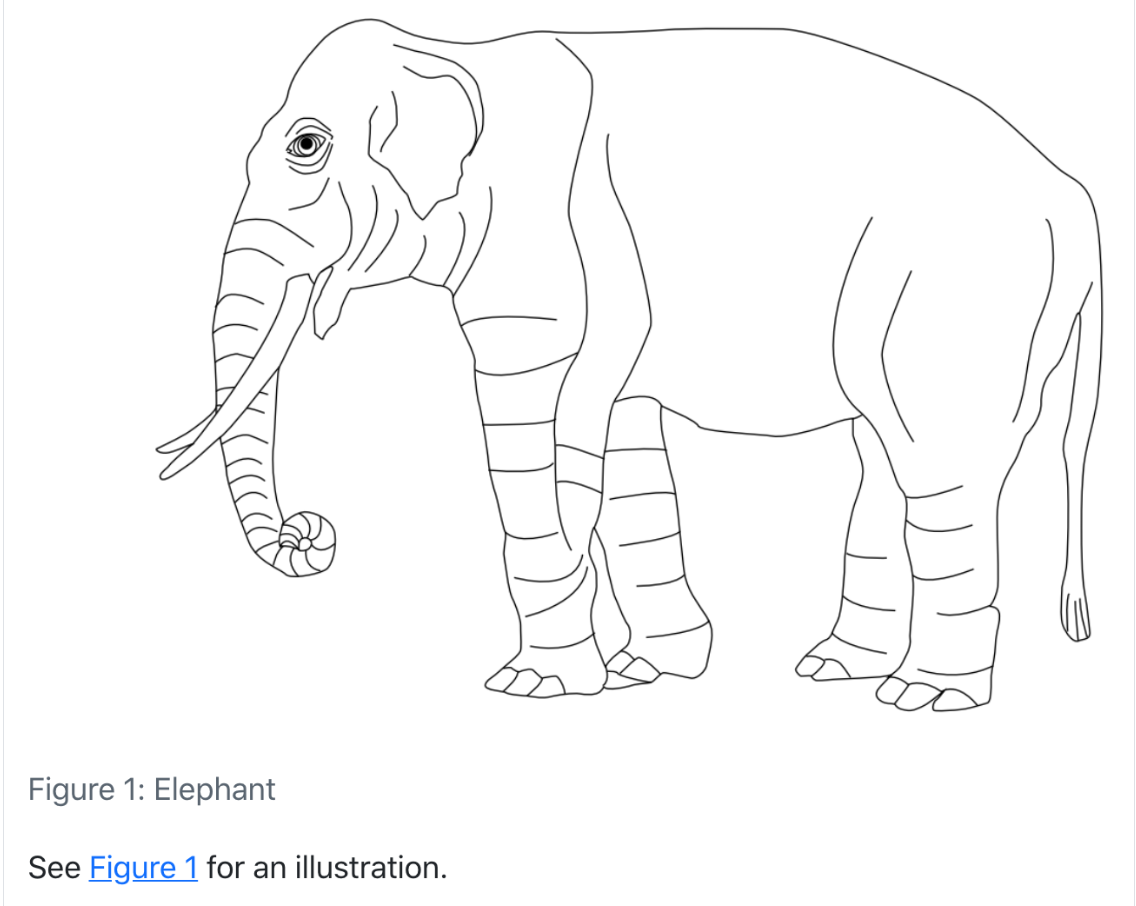

Adding a reference to an image:

![Elephant](elephant.png){#fig-elephant}

Referencing the image:

See @fig-elephant for an illustration.

See more

Cross-references make it easier for readers to navigate your document by providing numbered references and hyperlinks to various entities like figures and tables

• Equations
• Diagrams
• Tables
• Figures

Publish to the web for free!

• Quarto Pub: Publish rendered quarto documents on the web with the click of a button in Rstudio https://quartopub.com/

• GitHub: Host your site through gh-pages on GitHub. Enable in GitHub repo ⚙️Settings. See GitHub Pages chapter in Quarto documentation for more details.

• Netlify: Connect a repository, build your site, deploy and host for free. https://www.netlify.com/. See Netlify chapter in Quarto documentation for more details.

https://quarto.org/docs/publishing/

These technologies are extremely empowering. Because they generate html outputs, and through a number of available options, they allow us to publish to the web for free! This is how I learned.

A few of the options available to us are:

• Netlify, richer features and easy automated builds

Managing code

Managing analysis code

Separate function definition and application

• In the beginning: many lines of directly executed code in a single analysis script.

• As it matures: reusable chunks ➡️ functions.

• When a project is new and shiny, an analysis script usually contains many lines of directly executated code.

• As it matures, reusable chunks get pulled into their own functions.

• as functions defined in separate R scripts, The actual analysis scripts then become relatively short and hopefully easier to follow,

But what is the best way to manage such modular code?

R Package Structure

Used to share functionality with the R community

• Useful conventions

• Useful software development tools

• Easy publishing through GitHub

By suggestion to you is to follow the language conventions for packaging code. In R that would be R package structure.

The good thing about following this structure is that it provides:

• useful convention so that you don’t have to invent your own and can maintain the same structure across your projects

• This convention in turn allows us to use all the tools used for software developing, documenting, testing and distributing R code!

R Package conventions:

• metadata: in the DESCRIPTION file

• functions in .R scripts in the R/ folder

• tests in the tests/ folder

• Documentation:

  • functions using Roxygen notation
  • workflows using .Rmd documents in the vignettes/ folder

DESCRIPTION file

Package metadata

Package: EMODnetWCS
Title: Access EMODnet Web Coverage Service data through R
Version: 0.0.0.9012
Authors@R: c(
    person("Anna", "Krystalli", , "annakrystalli@googlemail.com", role = "aut",
           comment = c(ORCID = "0000-0002-2378-4915")),
    person("Salvador", "Fernández-Bejarano", , "salvador.fernandez@vliz.be", role = "cre",
           comment = c(ORCID = "0000-0003-0535-7677")),
    person("European Marine Observation Data Network (EMODnet) Biology project", "European Commission's Directorate - General for Maritime Affairs and Fisheries (DG MARE)", , "bio@emodnet.eu", role = "cph"),
    person("VLIZ (VLAAMS INSTITUUT VOOR DE ZEE)", , , "info@vliz.be", role = "fnd")
  )
Description: Access and interrogate EMODnet Web Coverage Service data
    through R.
License: MIT + file LICENSE
Imports:
    checkmate,
    cli,
    curl,
    glue,
    httr,
    magrittr,
    memoise,
    ows4R (>= 0.3-2),
    purrr,
    rlang,
    sf,
    terra,
    tibble
Suggests:
    covr,
    fs,
    httptest,
    huxtable,
    knitr,
    rmarkdown,
    testthat (>= 3.0.0),
    webmockr,
    withr
Config/testthat/edition: 3
Remotes:
    eblondel/ows4R
Encoding: UTF-8
Roxygen: list(markdown = TRUE)
RoxygenNote: 7.2.1
URL: https://github.com/EMODnet/EMODnetWCS,
    https://emodnet.github.io/EMODnetWCS/
BugReports: https://github.com/EMODnet/EMODnetWCS/issues
Depends:
    R (>= 3.3.0)
LazyData: true
VignetteBuilder: knitr
Date: 2022-09-29

The most important file in an R package is the DESCRIPTION file.

This holds important metadata about tyour package such as: - Title - description - Version - authorship details - license details

citation

citation("EMODnetWCS")

To cite package 'EMODnetWCS' in publications use:

  Krystalli A (2022). _EMODnetWCS: Access EMODnet Web Coverage Service
  data through R_. R package version 0.0.0.9012. Integrated data
  products created under the European Marine Observation Data Network
  (EMODnet) Biology project (EASME/EMFF/2017/1.3.1.2/02/SI2.789013),
  funded by the European Union under Regulation (EU) No 508/2014 of the
  European Parliament and of the Council of 15 May 2014 on the European
  Maritime and Fisheries Fund, <https://github.com/EMODnet/EMODnetWCS>.

A BibTeX entry for LaTeX users is

  @Manual{,
    title = {{EMODnetWCS}: Access EMODnet Web Coverage Service data through R},
    author = {Anna Krystalli},
    year = {2022},
    note = {R package version 0.0.0.9012. Integrated data products created under the European Marine Observation Data Network (EMODnet) Biology project (EASME/EMFF/2017/1.3.1.2/02/SI2.789013), funded by the European Union under Regulation (EU) No 508/2014 of the European Parliament and of the Council of 15 May 2014 on the European Maritime and Fisheries Fund},
    url = {https://github.com/EMODnet/EMODnetWCS},
  }

The cool thing about managing metadata about your project through the DESCRIPTION file is that you can then use R function citation on your project to autogenerate a citation in both text and bibtex format!

Functions in R/

example function script

Create a new function .R file in the R/ folder

usethis::use_r("add")

R
└── add.R

0 directories, 1 files

As I mentioned, the other important convention to organising code as an R package is storing our functions in .R scripts in an /R folder in the root of our project.

To quickly create such a script in the correct location, we can use usethis function use_r and supply the name of the file we want to create as the argument

This creates the script with the name we specified, add.R in the R folder

Document functions with Roxygen

Code > Insert Roxygen Skeleton

#' Add together two numbers.
#'
#' @param x A number.
#' @param y A number.
#' @return The sum of x and y.
#' @examples
#' add(1, 1)
#' add(10, 1)
#' @export
add <- function(x, y) {
  x + y
}

• Document function inputs (param), outputs (return) and usage by providing examples
• In packages, create help files on build (autogenerated .Rd files in man/)

Another important aspect to managing our R code is documenting it.

In R we use an annotation language called roxygen to document our R functions, indicated by the #' line prefix, and here I’m documenting a simple function that adds x & y which I created in our add.R script

This allows us to document: - function descriptions - function input details through the @params slots - function outputs through the @return slot - examples of how to use the function and most importantly - the @export slot specifies that the function should be made available to users when the package is loaded.

tests

Tests provide confidence in what the code is doing.

Once we have written our functions, it’s a good idea, especially if they are critical to our analysis, to write test for them so we can confirm that they are behaving as we expect them to

Again, by managing our code as an R package means that tools developed for testing R code are available for us to use.

Example test

usethis::use_test("add")

Creates a tests/ folder with the following files

tests
├── testthat
│   ├── test-add.R
└── testthat.R

test-add.R

test_that("add works", {
  expect_equal(add(2, 2), 4)
})

Tests live in a /tests folder but again, there’s a handy function in usethis, use_test to help us create our test scripts in the correct place.

• By using the same name as the test script, the function names the script appropriately so we can quickly find where the tests associated with a particular function script are located.

• Here I’ve written a simple test that confirms that summation is working correctly

• To run the tests, I click the test button on the build panel.If any of the tests fail I will get an error, otherwise the tests proceed silently.

• Can automated through Continuous Integration (CI) to Monitor the effect of changes to the code and Safely onboarding of contributions

Research compendia

A Research compendium

The paper is the advertisement

“an article about computational result is advertising, not scholarship. The actual scholarship is the full software environment, code and data, that produced the result.”

John Claerbout paraphrased in Buckheit and Donoho (1995)

The concept of a Research Compendium

” …We introduce the concept of a compendium as both a container for the different elements that make up the document and its computations (i.e. text, code, data, …), and as a means for distributing, managing and updating the collection.”

Gentleman and Temple Lang, 2004

Research compendia in R

Ben Marwick, Carl Boettiger & Lincoln Mullen (2018) Packaging Data Analytical Work Reproducibly Using R (and Friends)

slides: Karthik Ram: rstudio::conf 2019 talk

Example compendium

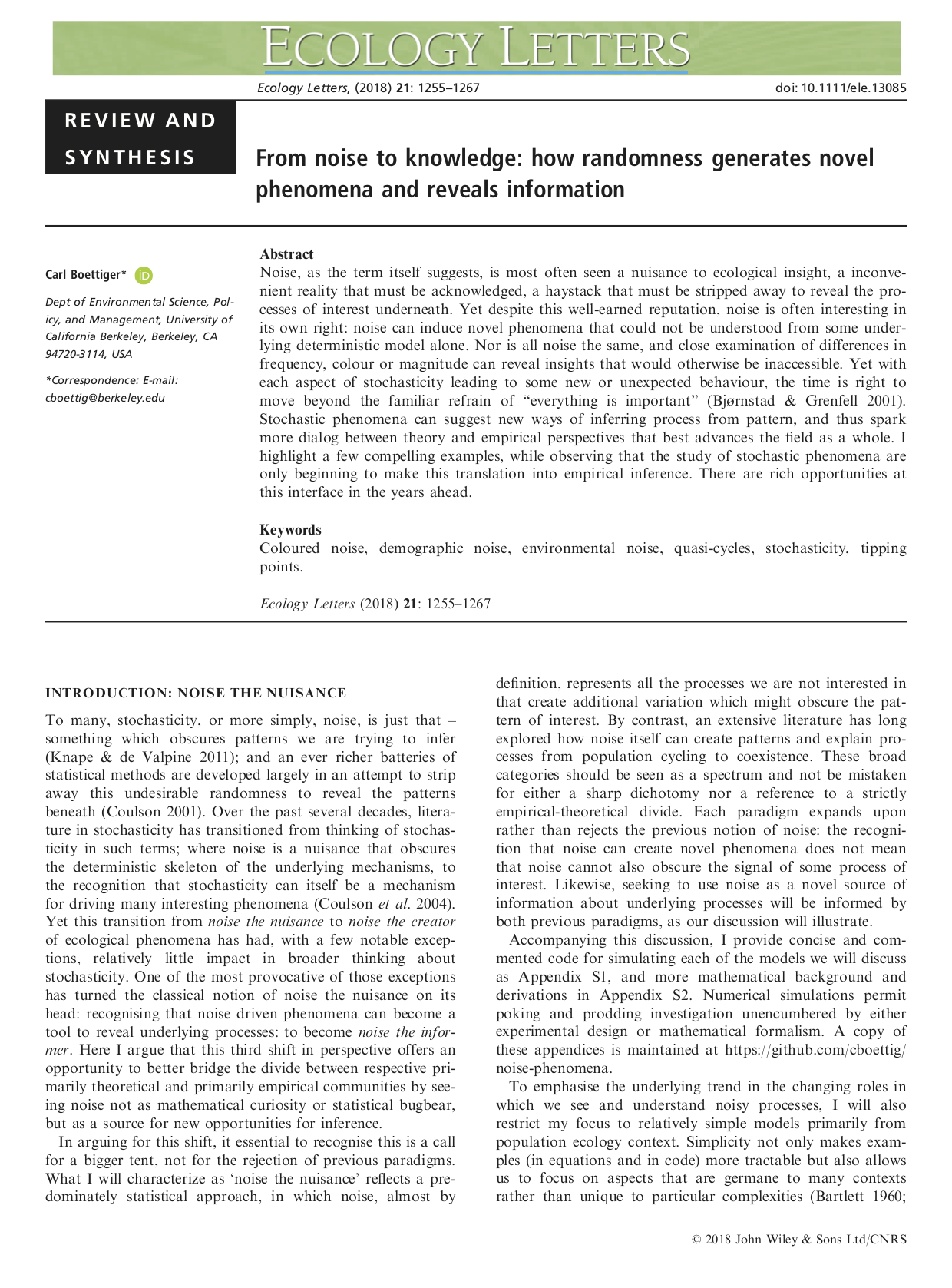

Paper:

Boettiger, C. (2018) From noise to knowledge: how randomness generates novel phenomena and reveals information. https://doi.org/10.1111/ele.13085

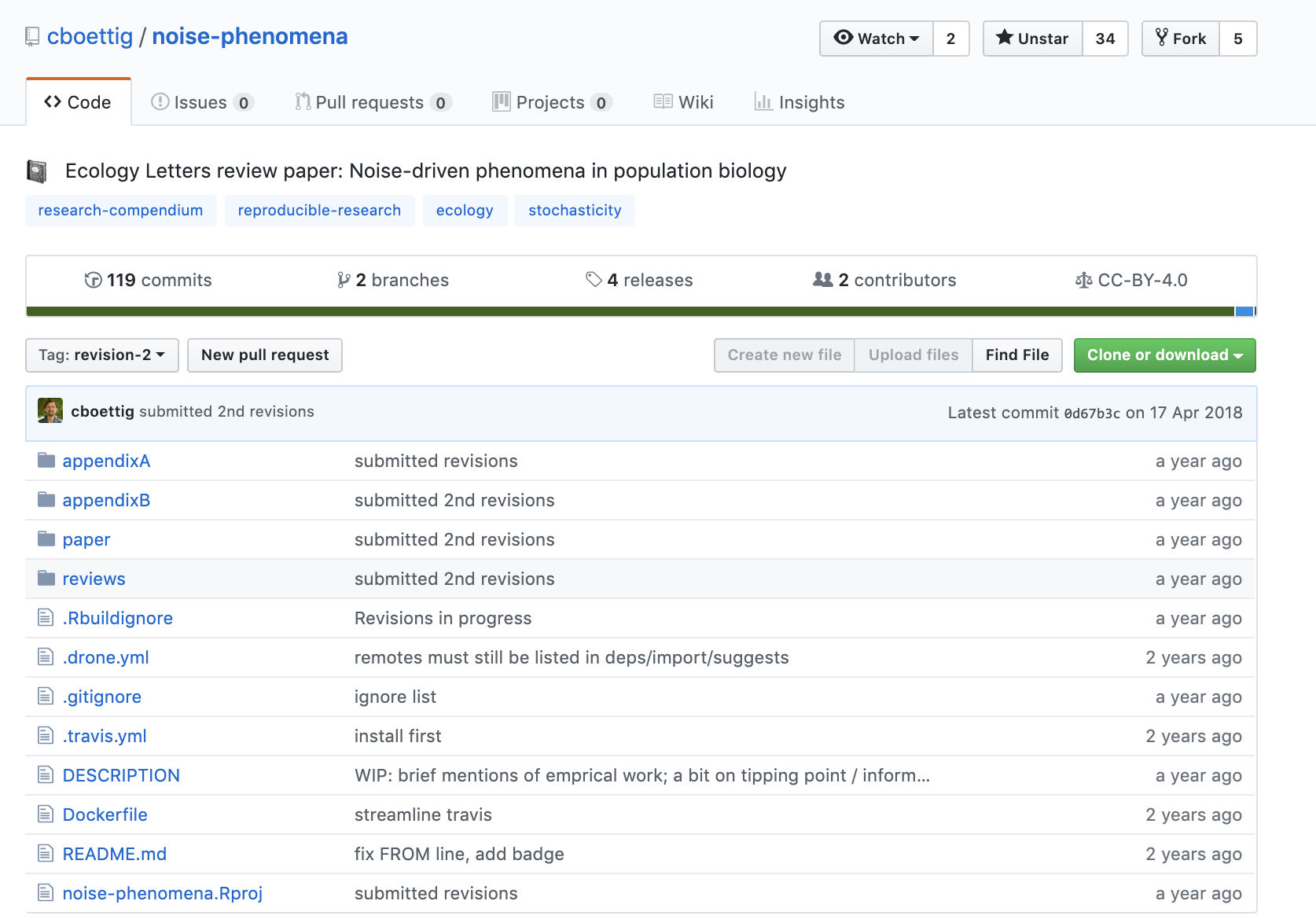

Compendium

cboettig/noise-phenomena: Supplement to: “From noise to knowledge: how randomness generates novel phenomena and reveals information” http://doi.org/10.5281/zenodo.1219780

rrtools: Creating Compendia in R

“The goal of rrtools is to provide instructions, templates, and functions for making a basic compendium suitable for writing reproducible research with R.”

Install rrtools from GitHub

# install.packages("devtools")
devtools::install_github("benmarwick/rrtools")

Create a research compendium

Based on R package structure

library(rrtools)
use_compendium("myproject")
use_readme_rmd()
use_analysis()
add_dependencies_to_description()

R compendium structure

.
├── CONDUCT.md
├── CONTRIBUTING.md
├── DESCRIPTION
├── LICENSE
├── LICENSE.md
├── NAMESPACE
├── README.Rmd
├── README.md
├── analysis
│   ├── data
│   │   ├── DO-NOT-EDIT-ANY-FILES-IN-HERE-BY-HAND
│   │   ├── derived_data        # data generated during the analysis
│   │   └── raw_data            # data obtained from elsewhere
│   ├── figures                 # location of the figures produced by the qmd
│   ├── paper
│   │   ├── paper.qmd           # this is the main document to edit
│   │   └── references.bib      # this contains the reference list information
│   ├── supplementary-materials
│   └── templates
│       ├── author-info-blocks.lua
│       ├── journal-of-archaeological-science.csl
|       |                       # this sets the style of citations & reference
|       |                       # list
│       ├── pagebreak.lua
│       ├── scholarly-metadata.lua
│       ├── template.Rmd
│       └── template.docx       # used to style the output of the paper.qmd
└── myproject.Rproj

Reproducible Research in R with rrtools workshop materials.

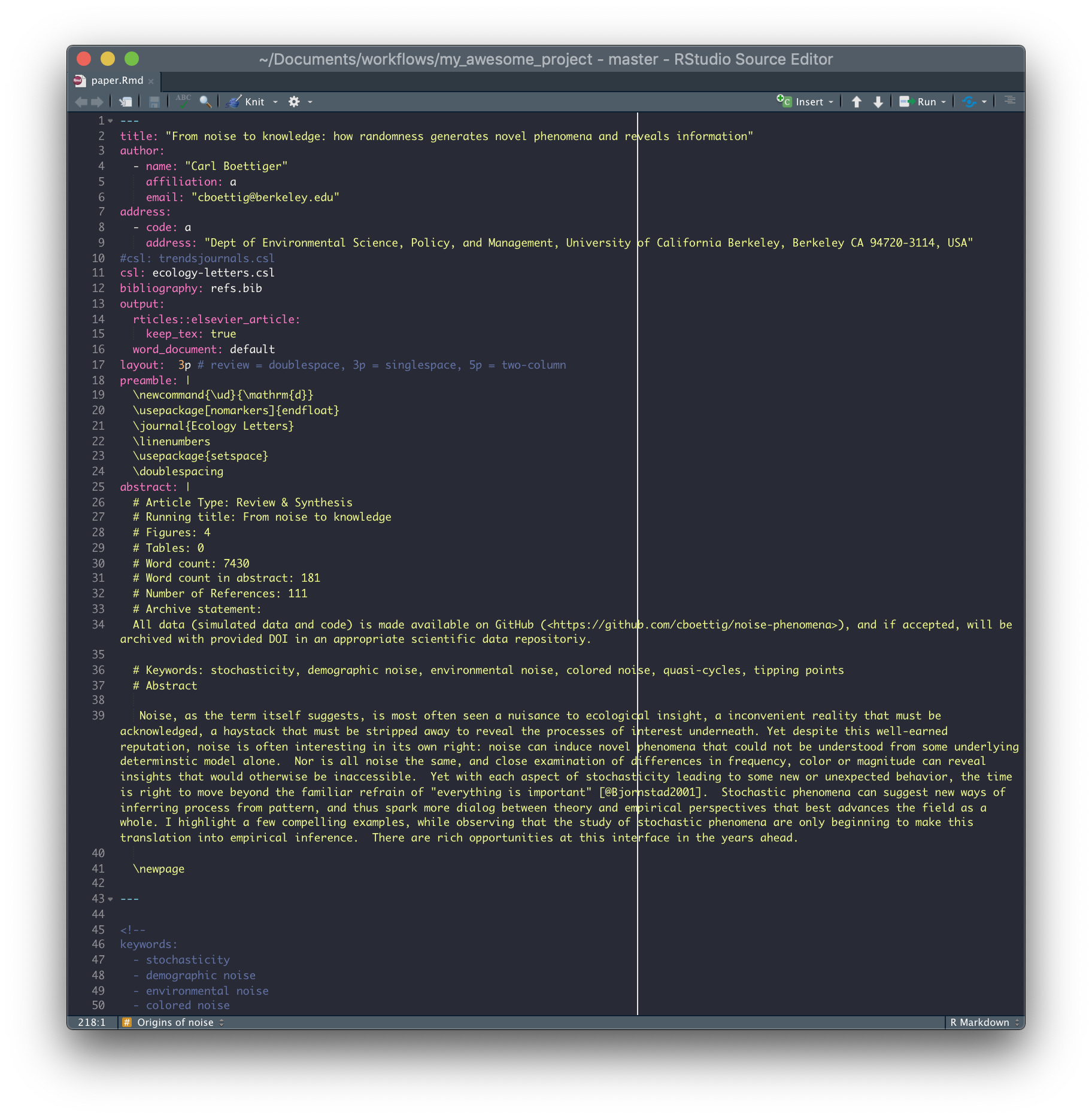

paper.qmd to paper.pdf

Rmd

pdf

Reproducible Computational Environments

Why isn’t sharing code always enough?

Case Study: Sharing a Geospatial Analysis in R

On a computer without System Library GDAL ❌

package ‘rgdal’ successfully unpacked
and MD5 sums checked

configure: gdal-config: gdal-config
checking gdal-config usability... ./configure:
line 1353: gdal-config: command not found
no
*Error: gdal-config not found
...
*ERROR: configuration failed for
package ‘rgdal’

slide: Karthik Ram: rstudio::conf 2019 talk

What are Docker containers?

standardized units of software

package up everything needed to run an application: code, runtime, system tools, system libraries and settings in a lightweight, standalone, executable package

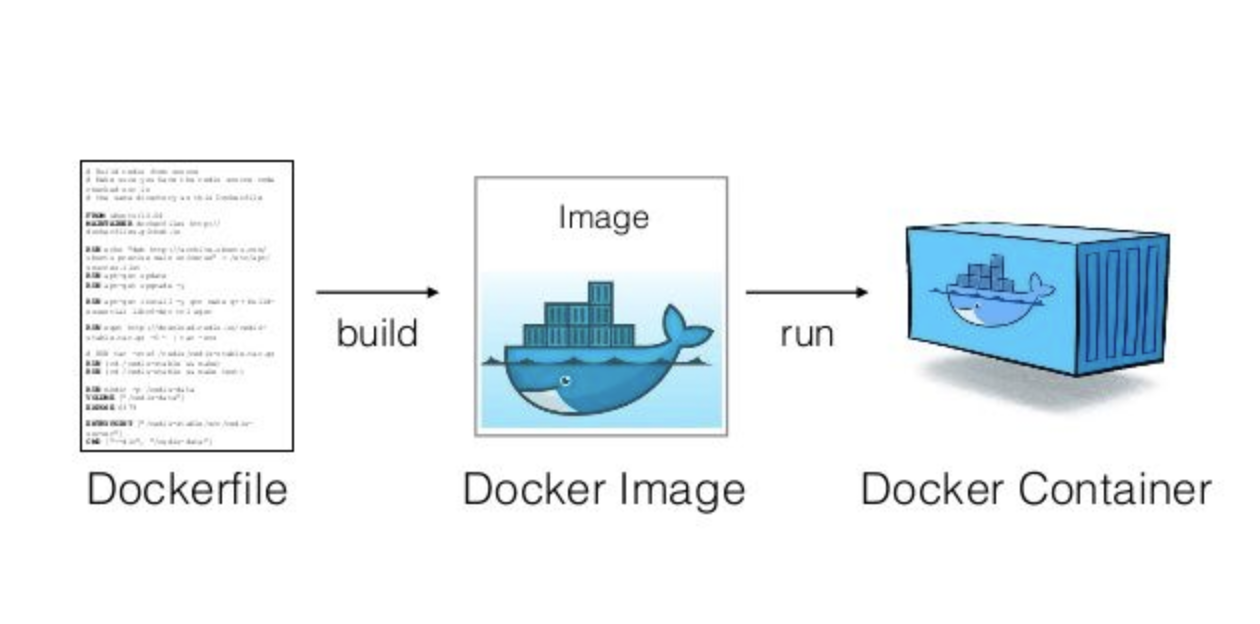

What are Docker containers?

• Dockerfile: Text file containing recipe for setting up computation environment.

• Docker Image: Executable built from the Dockerfile with all required dependencies installed. Can have many images from the same Dockerfile.

• Docker Container: Docker Images become containers at runtime

Rocker on DockerHub

using the rocker/geospatial Docker Image ✅

Karthik Ram: rstudio::conf 2019

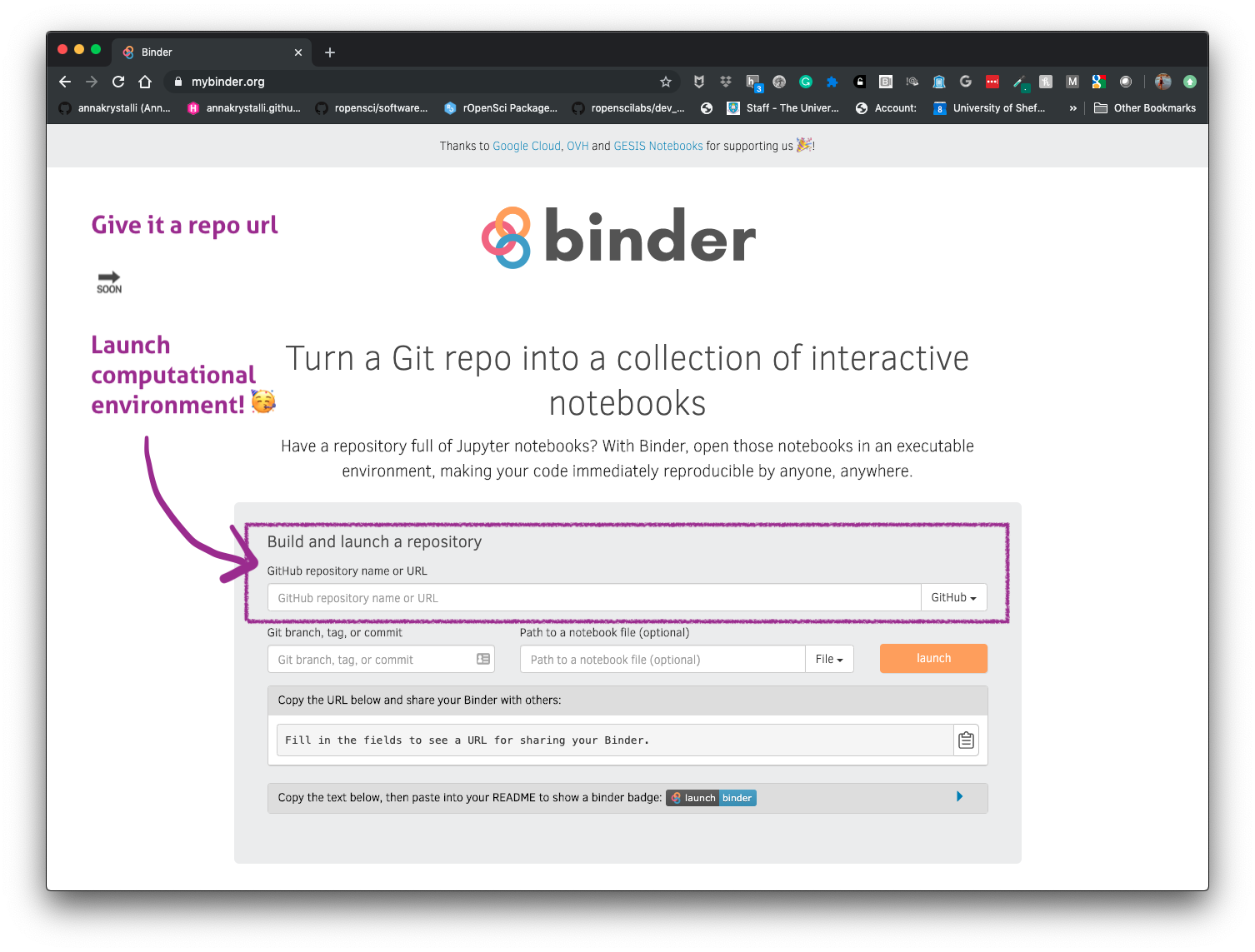

Binder

https://mybinder.org/

Bring your code repositories to life!

JupyterHub image was created by Scriberia for The Turing Way community and is used under a CC-BY licence

Capturing Computational Environments for R projects

• Create Dockerfile w/ rrtools

  rrtools::use_dockerfile()

• 📦 containerit packages R script/session/workspace and all dependencies as a Docker container by automagically generating a suitable Dockerfile

  # From session Info
  containerit::dockerfile(from = utils::sessionInfo())
  # From file
  containerit::dockerfile(from = "inst/demo.Rmd",
                                          image = "rocker/verse:3.5.2",
                                          maintainer = "Anna K",
                                          filter_baseimage_pkgs = TRUE)

• Binderise your R projects

  • Turing Way: Zero to Binder R Tutorial
  • holepuch 📦 provides functionality for configuring R projects for binder. holepuch workshop materials

Further Resources on Reproducibility in R

Version Control

• Happy Git and GitHub for the useR

RMarkdown

• Quarto Documentation
• R Markdown: The Definitive guide

R Packages

• R packages by Hadley Wickham and Jenny Bryan

Research Compendia

• Karthik Ram: rstudio::conf 2019 talk

Docker & Binder

• Getting started with binder docs
• rOpenSci Docker tutorial

Tutorials

• Rstudio Essentials Webinar series

MBA Courses Coming up!

• Introduction to programming in R

  19-21 March 2024
  Early bird pricing till 31st Jan 2024!

• Managing Your Scientific Code using Git & GitHub

  8-9 May 2024

👋 Thanks for 👀

Questions ❓
